AQS 1 Air Quality Monitor
Air Quality Monitoring Systems

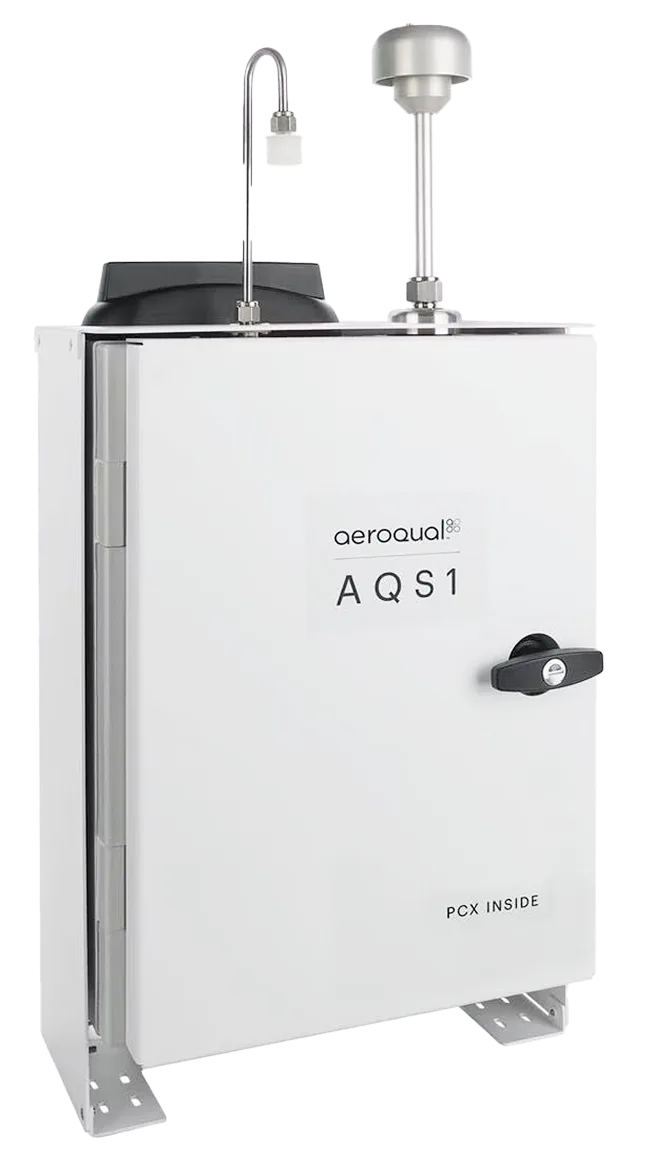

AQS 1 Air Quality Monitor

The Aeroqual AQS 1 Air Quality Monitor provides simultaneous measurement of multiple particle mass (PM) size fractions and airborne gas pollutants with near-reference accuracy. Housed in a rugged, weatherproof enclosure and featuring a modular design, it allows you to add or subtract pollutant modules according to the needs of your specific project. The AQS 1 is a compact air quality monitor that deploys in minutes and connects to our range of air monitoring software solutions, delivering remote, real-time data you can trust.

01

BENEFITS

02

WHO IS IT FOR?

03

SPECIFICATIONS

  • Minimize downtime and failure with a purpose-built outdoor monitor
  • Reduce site visits with filter change notifications, and two-way communications that allow you to calibrate, remotely troubleshoot, upgrade software, and change settings
  • Eliminate flow checks with integrated flow sensing and automated control (PCX)
  • Avoid invalid data caused by incorrect wind sensor orientation with the self-orienting met sensor
  • Act swiftly before an exceedance occurs with realtime alerts
  • Industry-leading gas sensing technology from Aeroqual comes fully integrated in the same compact format
  • Industrial site operators who need to manage dust and gas emissions from site activities, within regulatory or permitted limits:
  • Construction and remediation
  • Oil and gas facilities
  • Quarry and mine operators
  • Port and bulk handling terminals
  • Landfills and Wastewater treatment plants
  • Environmental consultants who want defensible data without the usual time and hassle of air monitoring projects
  • Regulatory authorities who need to fill the gaps in the regulatory air quality monitoring network
  • EHS managers who need to demonstrate that they are providing a safe environment for the people in their care
  • Researchers who want to collect accurate, scientifically robust data without the cost of a reference monitor
  • Control system: Embedded PC with on board data storage (>5 years)
  • Communications: Standard: WIFI, Ethernet (LAN) Optional modem: Cellular IP 4G LTE, Integrated high gain antenna
  • Software: Talk to our sales team to learn more about Aeroqual’s software products.
  • Averaging period: User selectable averaging interval from 1 min to 24 hr
  • Power requirements: 100-260 VAC or 9-36VDC battery/solar: Power usage: 15 to 30 W max steady state (configuration dependent)
  • Enclosure: Lockable IP65 GRP cabinet with integrated aluminum solar shield armor, built in temp/RH sensor (PCX)
  • Dimensions: 685 mm x 330 mm x 187 mm (27” x 13” x 73/8”) Includes PM inlet
  • Weight: < 13 kg (28.6 lbs)
  • Operating range: -10 °C to +45 °C (14 °F to 113 °F) Low temperature operation extendable with winterization pack
  • Mounting: Pole, tripod and wall mounting brackets included
  • Factory integrated sensors: Gill WindSonic (ultrasonic wind sensor), Vaisala WXT536 (weather transmitter), Cirrus MK427 Class 1 (noise sensor), Novalynx Pyranometer (solar radiation), Airmar 200WX (weather station)
  • Compatible tested sensors: A wide range of other sensors can be connected including: Victron SmartSolar MMPT 100-20 (solar charge controller), BSWA 308 (sound level meter) and Svantek SV971A (sound level meter).
  • Inputs/Outputs: 0-5V analog input, 4-20mA input, configurable relay output
